SPECIFICATIONS
Brand Name: ZMFJH
Choice: yes
External Testing Certification: CCC
High-concerned chemical: None
Item Diameter: 0
Item Height: 0
Item Length: 0
Item Weight: 613
Item Width: 0
LED Speedometer: Odometer Tachometer
Material: ABS

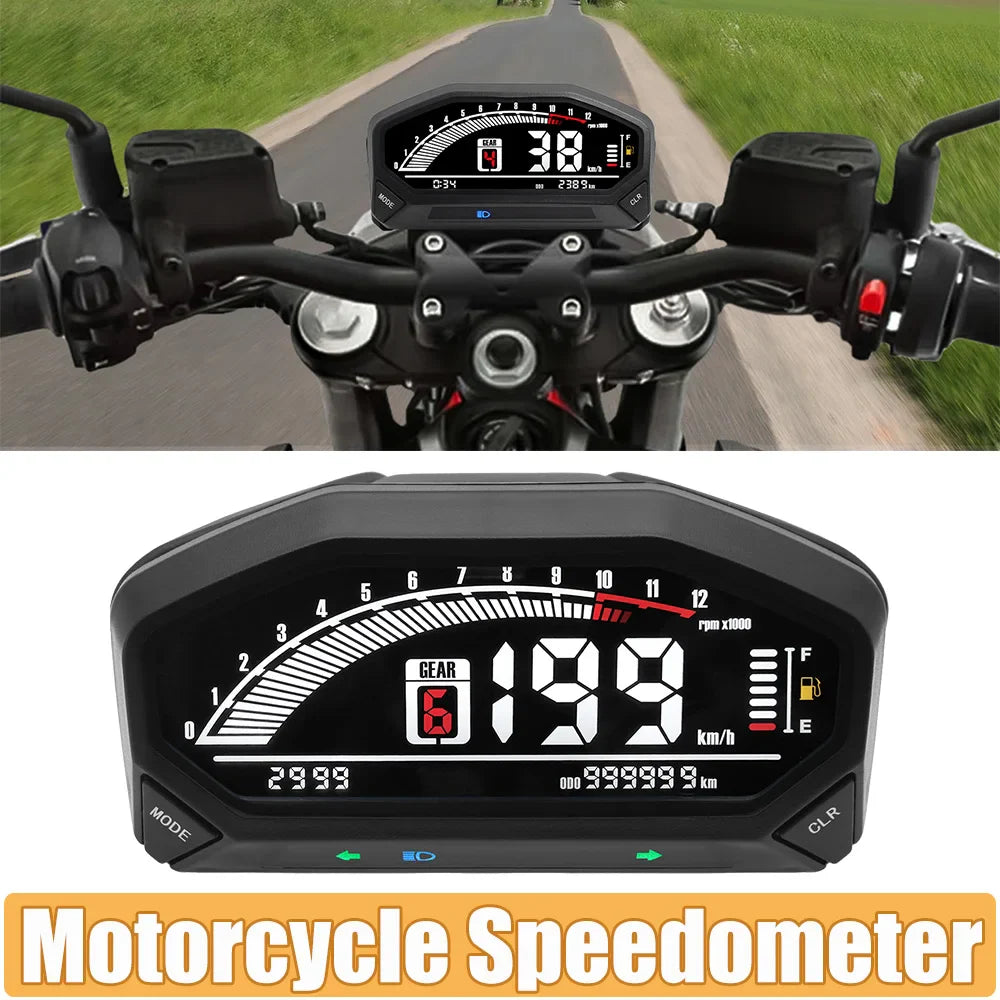

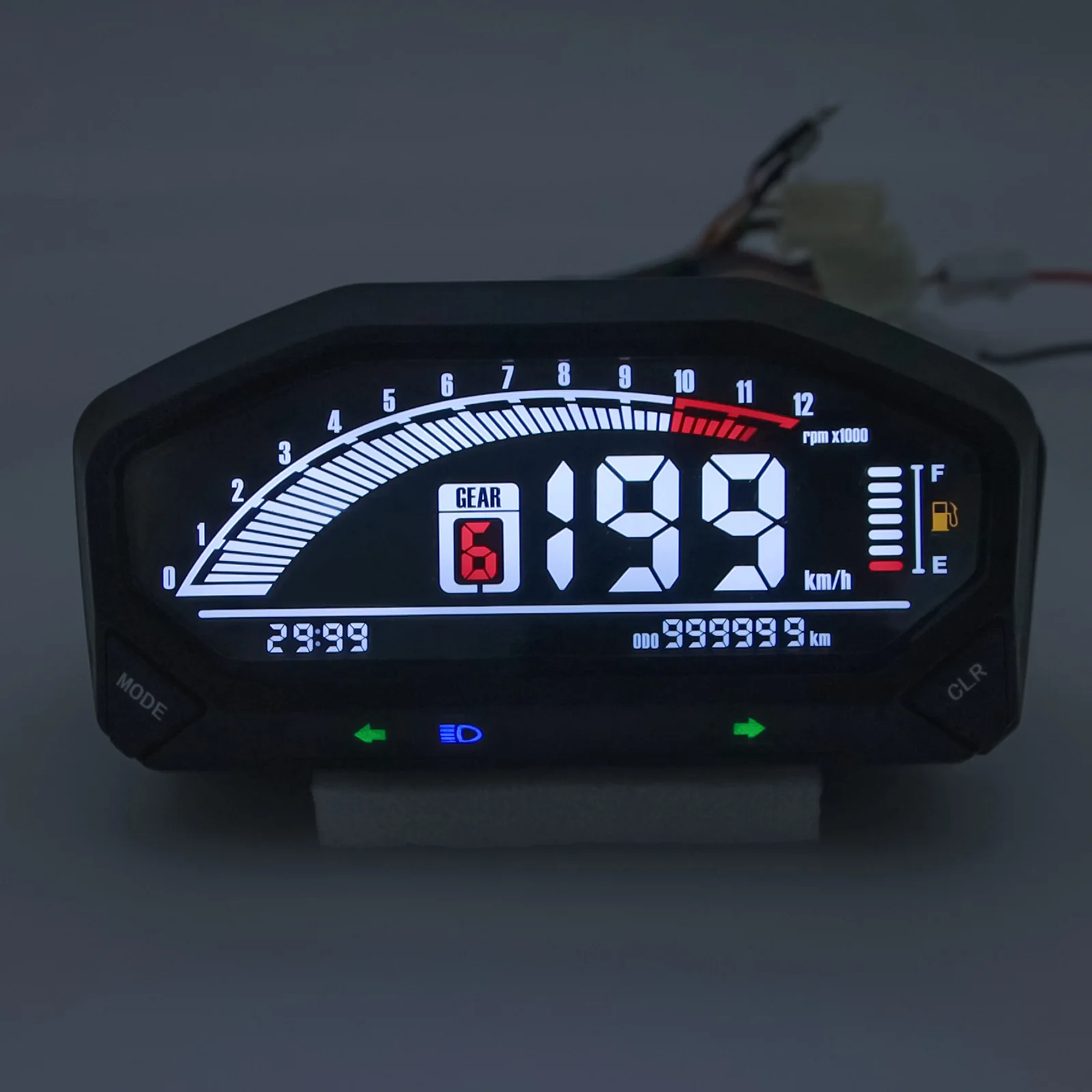

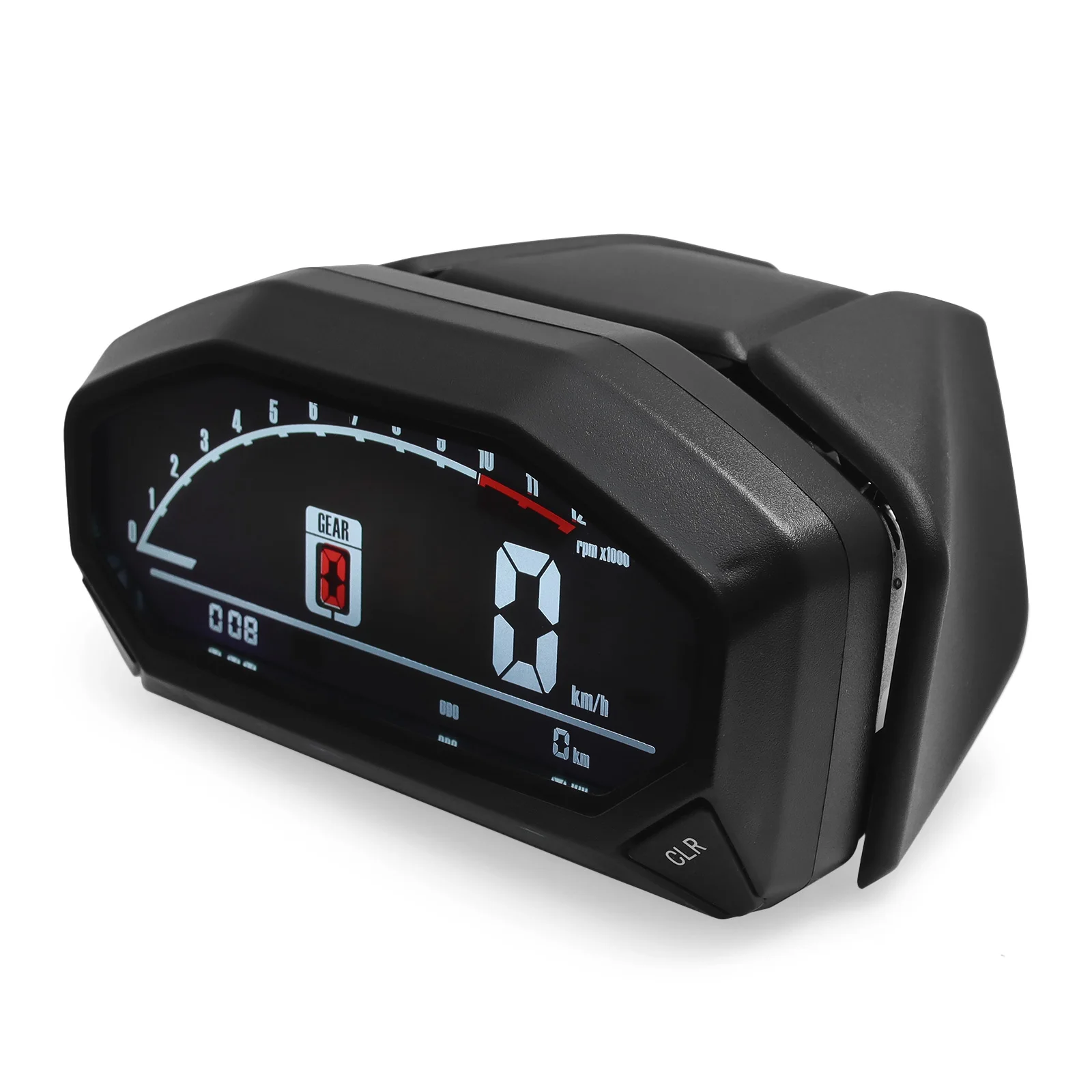

Model Name: motorcycle instrument
Origin: Mainland China
Special Features: Motorcycle Meter
Description:

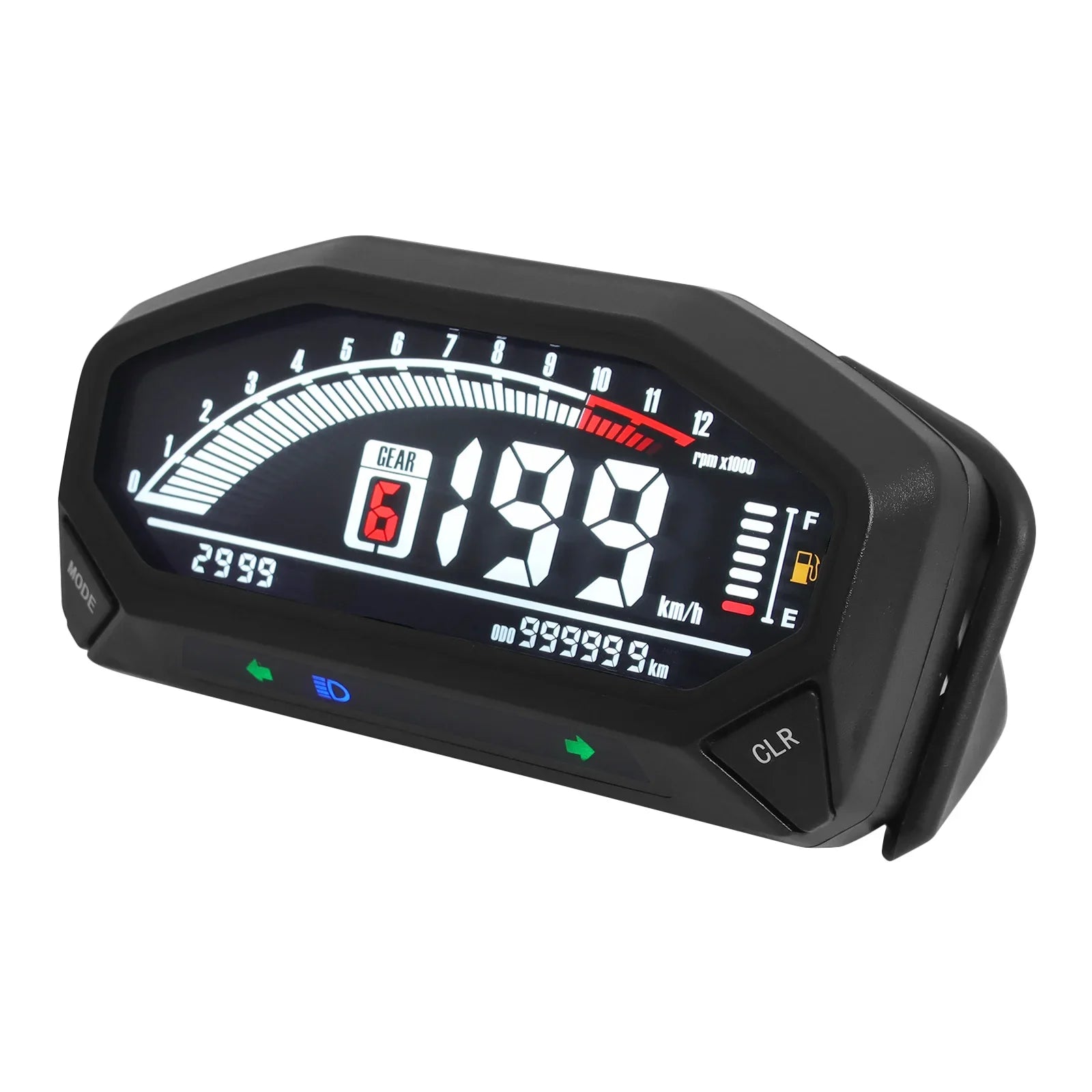

1.Max speed : 199km/h
2.Max trip: 999.9km
3.Max rpm:1200 rpm

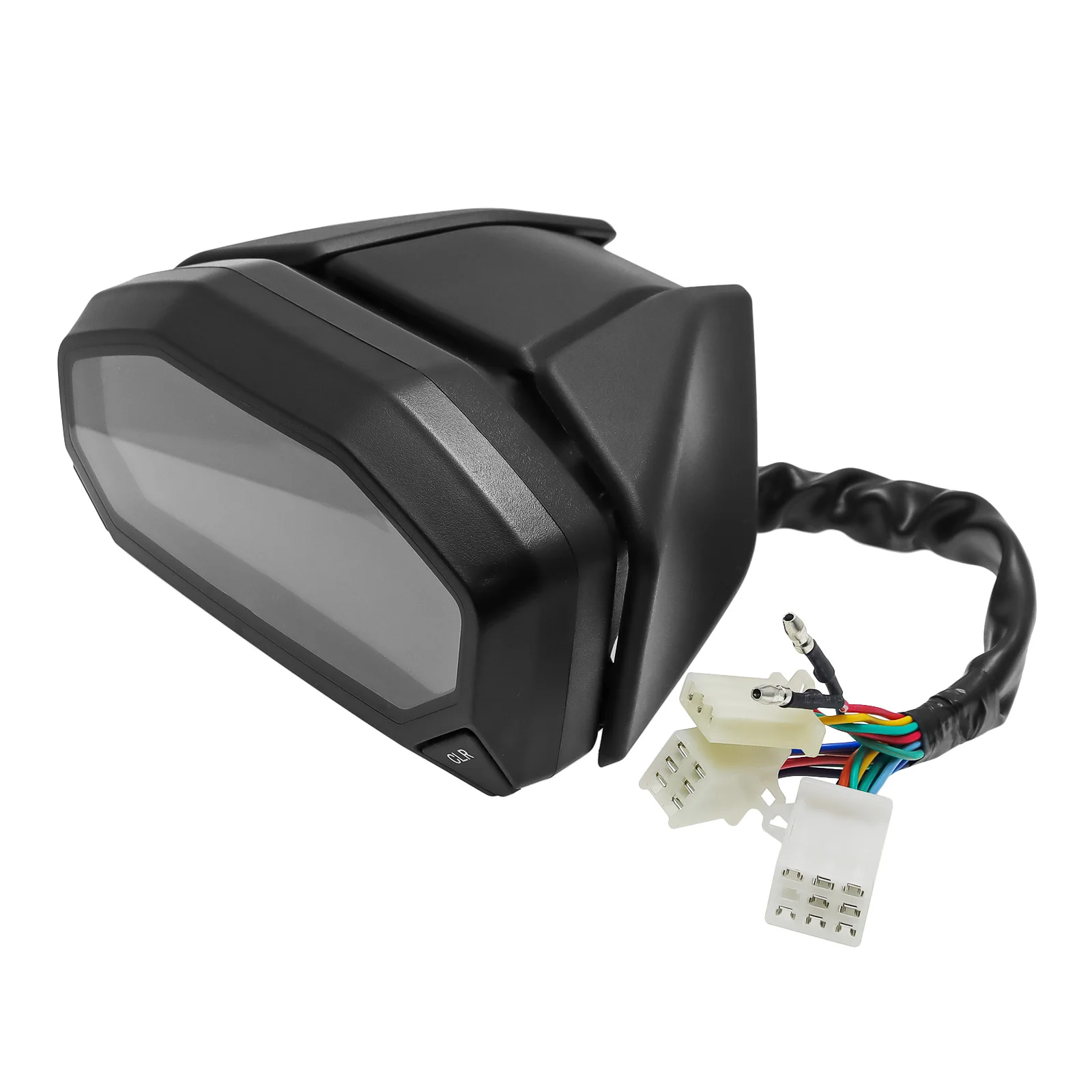

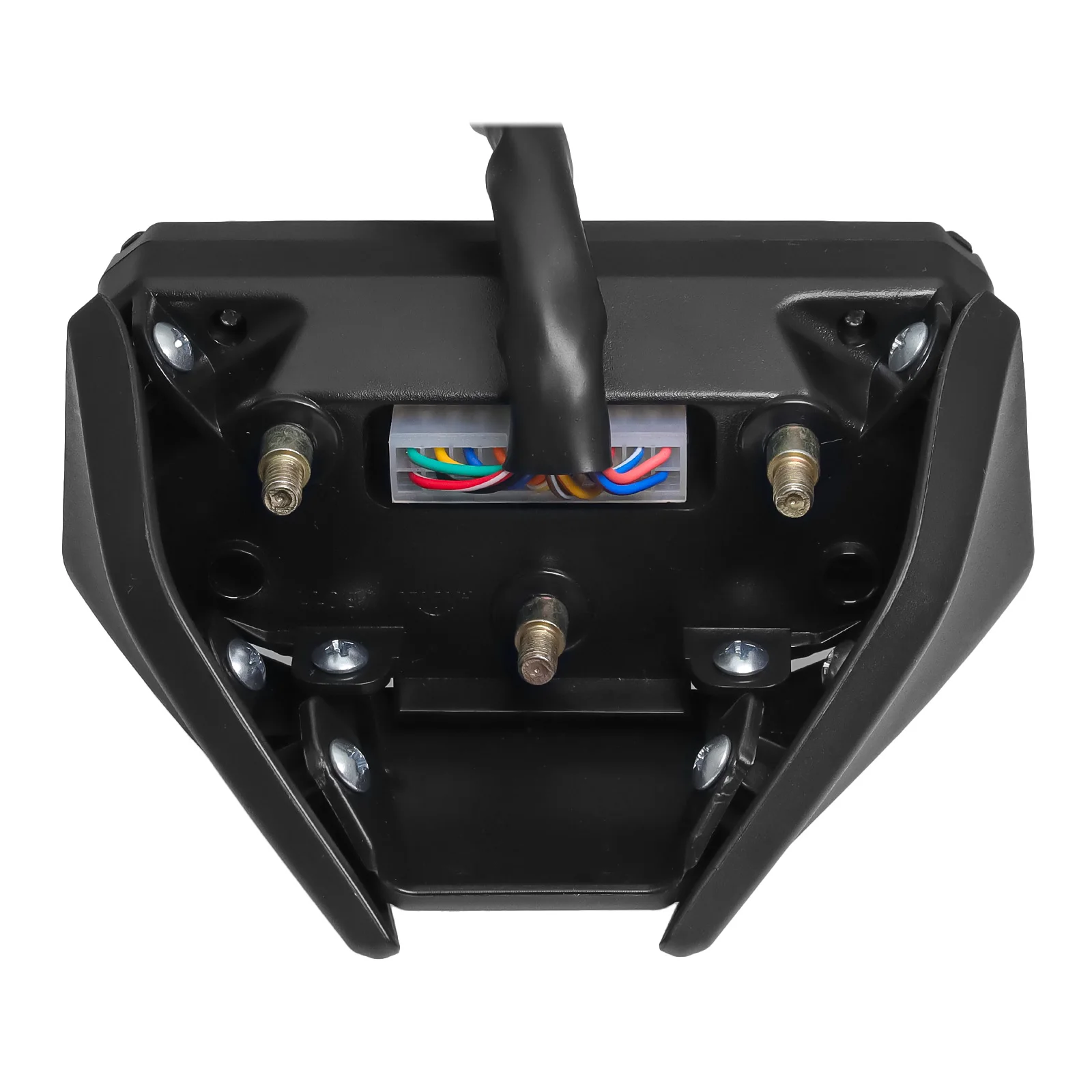

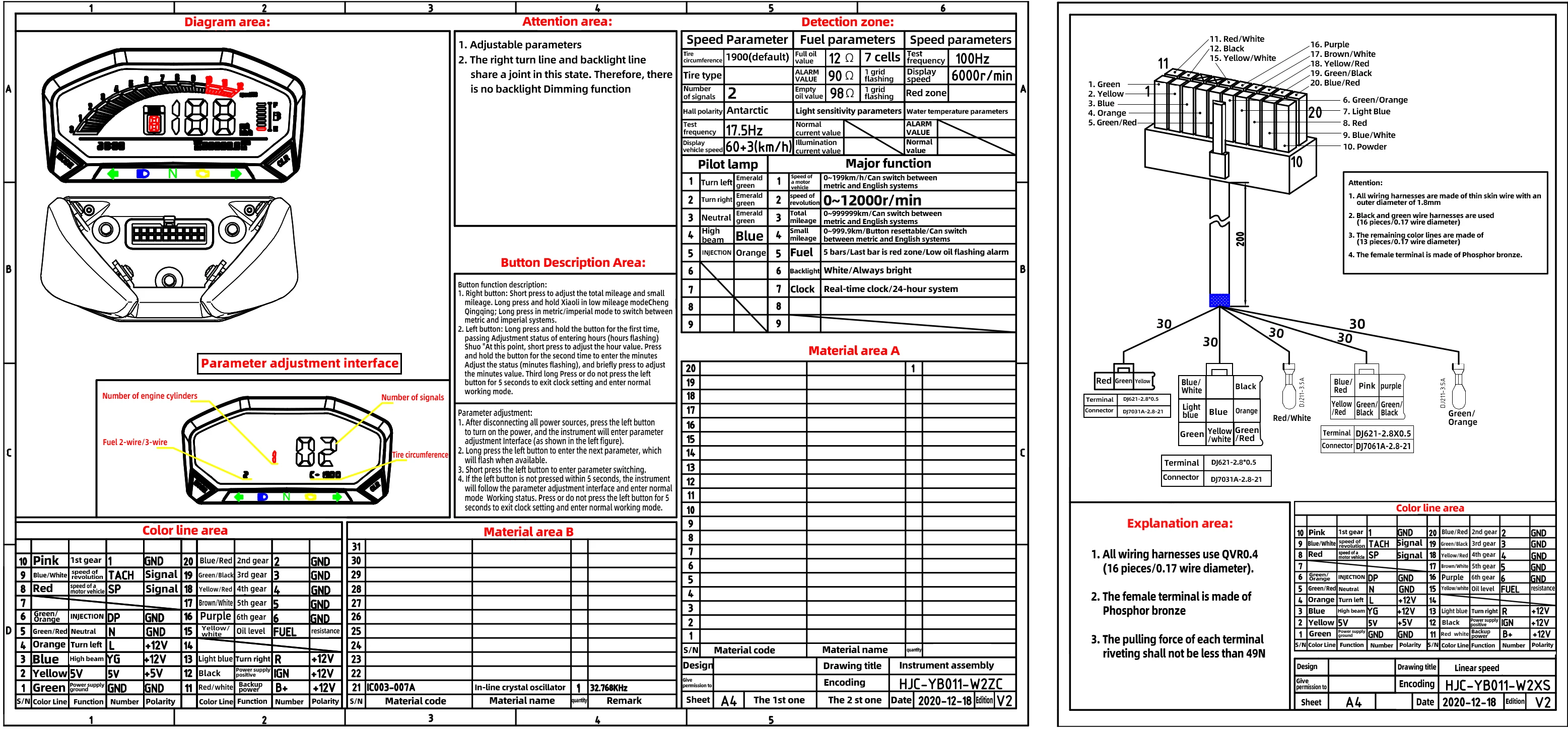

4.green wire ~negative power
5.yellow ~counter
6.blue~high beam
7.orange~left turning light
8.green/red~N gear
9.brown/red~injection engine
10.light blue~right turning light
11.red~speed
12.brown/white~RPM
13.pink~1 gear
15.red/white~extra power
16.black~ positive electrode
17.yellow/white~fuel display
18.purple~6 gear
19.brown/white~5 gear
20.yellow/red~4 gear
21.green/black~3 gear
22.blue/red~2 gear

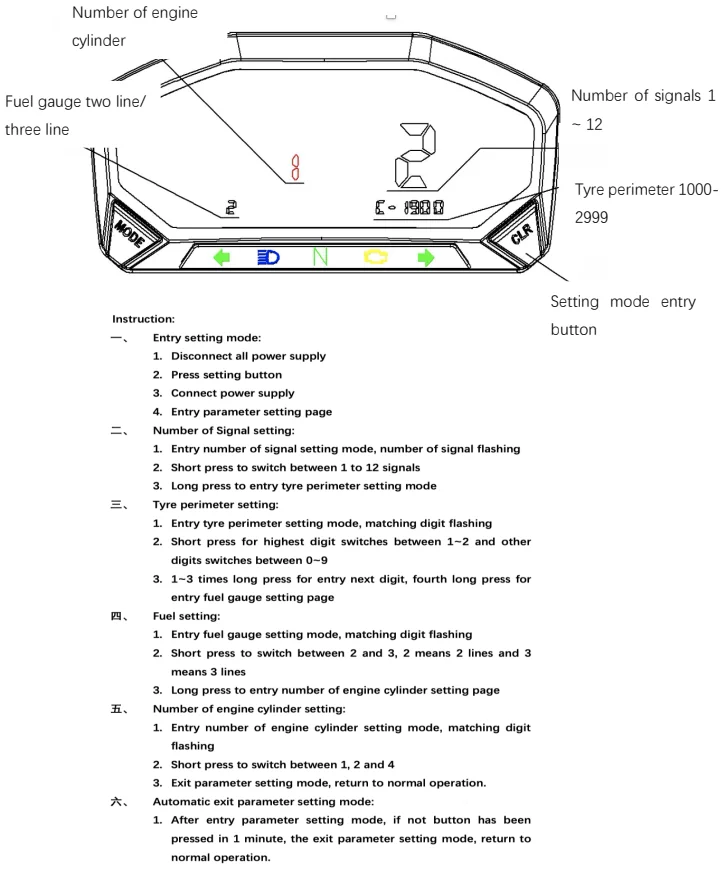

Entry setting mode:
1. Disconnect all power supply.
2. Press setting button.
3. Connect power supply.
4. Entry parameter setting page.

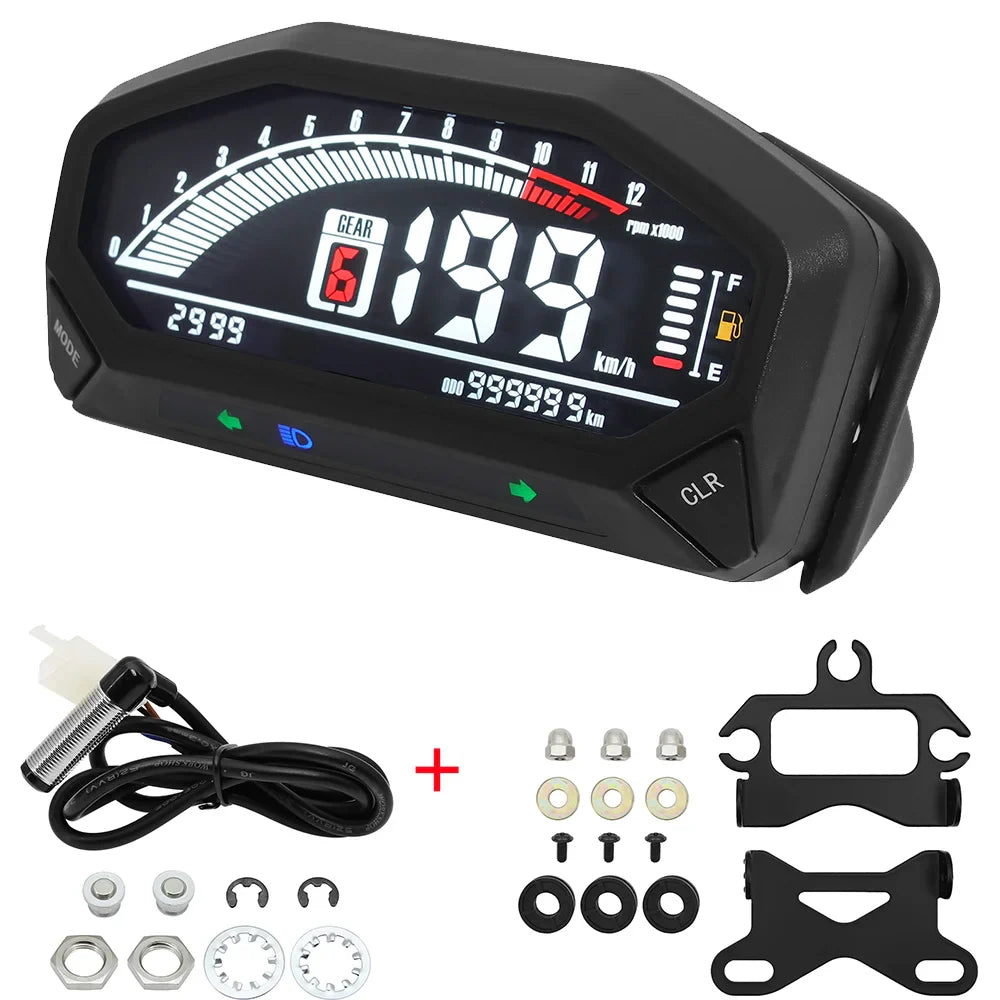

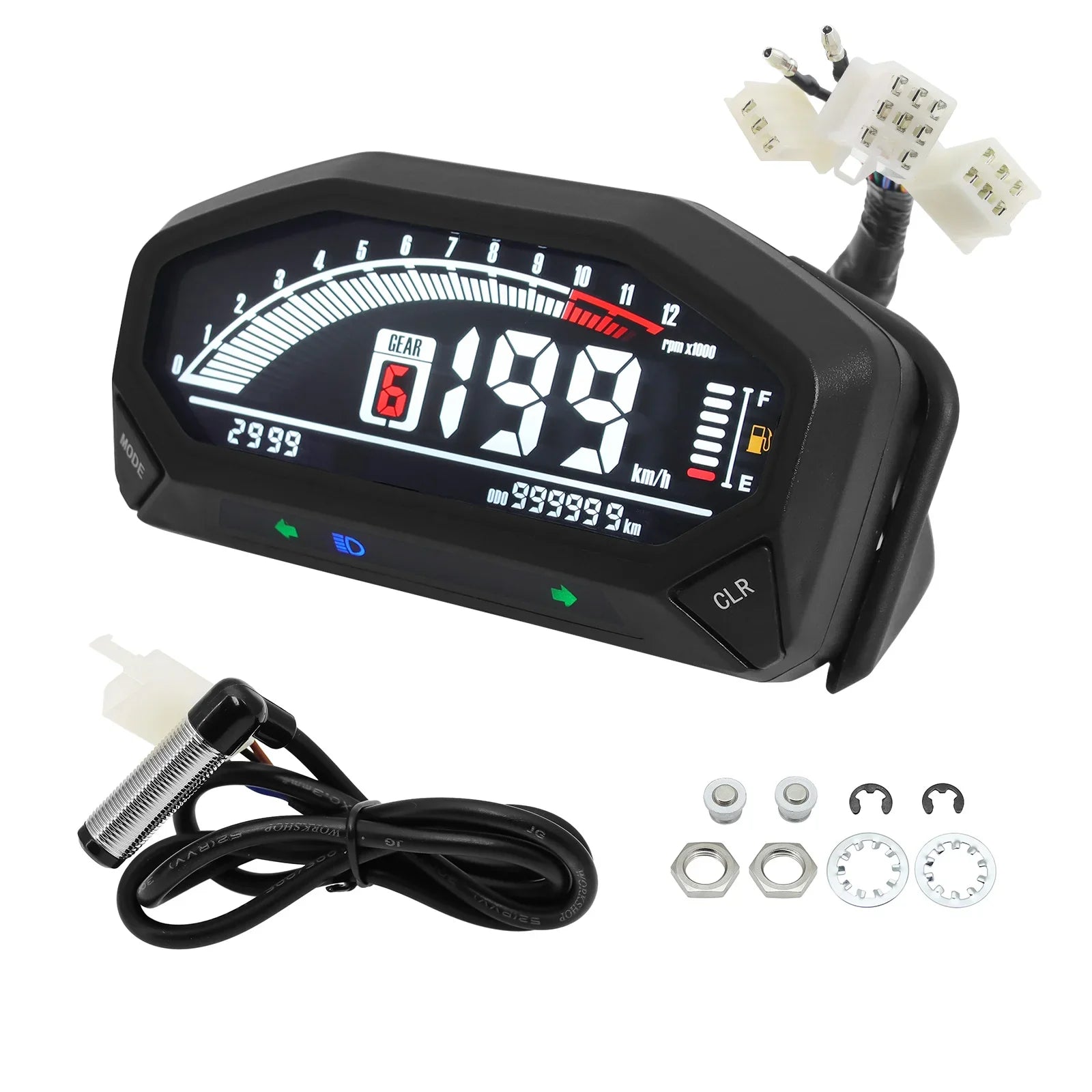

Package:
1*Gauge
or
1*Sensor
1*Gauge
or
1*Bracket
1*Sensor
1*Gauge
